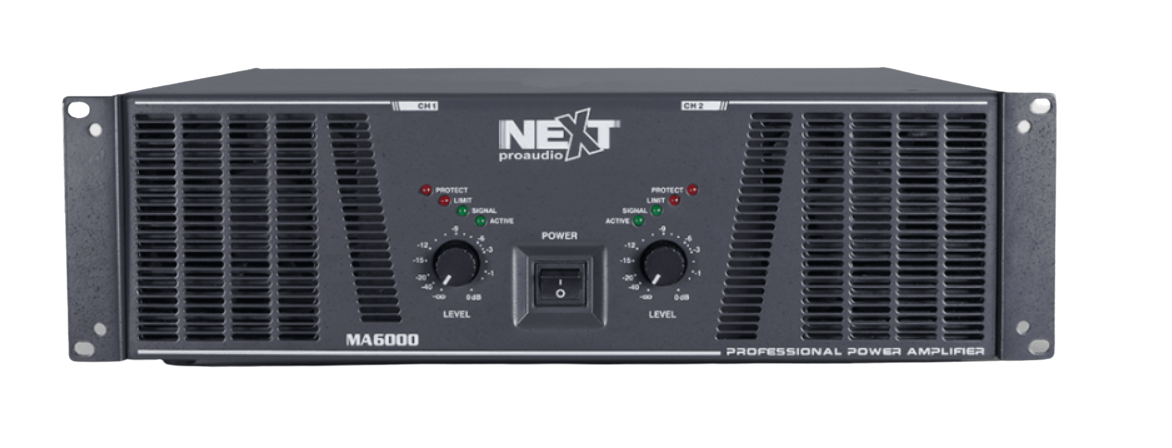

3U Professional Amplifier
Specifications
- Frequency Response: 15Hz – 25,000Hz (+0 / -1dB)
- Amplifier Technology: Class H
- Amplifier Power – Stereo:
- 8Ω: 2x 1400W
- 4Ω: 2x 2100W
- 2Ω: 2x 3000W
- Amplifier Power – Bridge: 8Ω 6000W
- Damping Factor: >400:1
- THD+N: <0.025%
- IMD: <0.04%
- SNR (Signal to Noise Ratio): >105dB
- Slew Rate: 40V/uS
- Input Sensitivity: Selectable (0.77V / 1.0V / 1.44V)
- Input Impedance: 10kΩ balanced to ground
- Input Connectors: Female & Male XLR-3
- Output Connectors: 4 pole Speakon and binding posts
Protections
- Full short circuit
- Open circuit
- Thermal
- Soft start
- DC
- Sub/Ultrasonic and RF
Cooling & Power
- Cooling Type: Front to back via 2 variable speed fans
- Power Input: 230VAC, 50Hz-60Hz (others by request)
Dimensions & Weight
- Dimensions (WxHxD): 482mm x 468mm x 132mm
- Net Weight: 37.2kg
- Shipping Weight: 39kg
Overview
Discover the power of cutting-edge audio technology with this 3U Professional Amplifier. Featuring Class H amplifier technology, it delivers impressive stereo and bridge power across various impedances. Equipped with essential protections and sophisticated cooling, it maintains reliable performance under demanding conditions. Built for seamless integration, it offers multiple input options along with intuitive control of input sensitivity. This amplifier ensures high-quality sound with exceptional damping, low distortion, and superior signal-to-noise ratio, all encapsulated in a robust yet sleek design.
